U Type – Half Pipe Tipping Semi Trailer

HomeProductsTipper TrailersU Type – Half Pipe Tipping Semi Trailer
Close

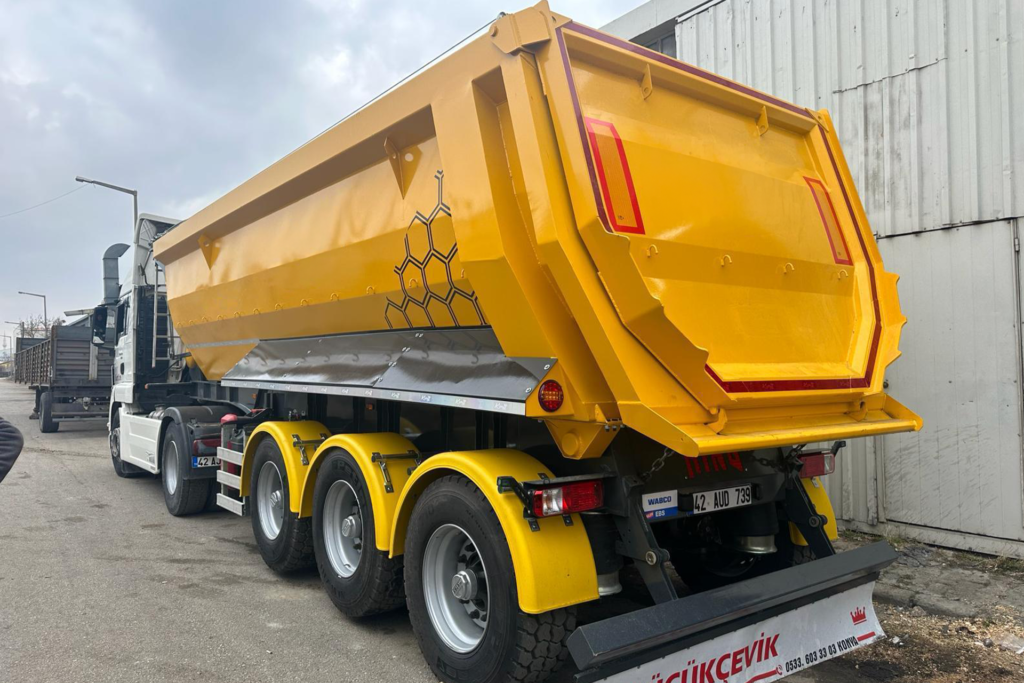

U Type – Half Pipe Tipping Semi Trailer 1

Enhanced Features

KNG Trailer manufactures high quality tipper trailer from Turkey to World. In our tipper trailer we use Hidromas Brand hydraulic cylinder which is well know from all tipper users. With this trailer you can carry construction materials. According to demand we can change the technical specificataions. KNG Trailer can produce tipper trailer 400 pcs in a year.

Chassis and Structure

The chassis designed in accordance with the international transportation standards also available and prepared as having “I” section centre members are welded by submerged welding machine. They are welded between 120/12 mm bottom or top flat steel and 5 mm hub plate with high resistance to allow to obtain the highest efficiency under all road and weather conditions.Tipper body is manufactured from durable steel plate against 450 Hb wears and impacts.Adjustable springs on end cover are connected on the upper side, they can be opened and closed from bottom.There are plastic mallets to prevent wearing and noice on the points that contact with rack.

Hydraulıc System

Tipper movement is provided by level 5 heavy telescopic cylinder which provides 45 Degree tilled angle.Oil reservoir has suction filter, tipper pneumatic remote, 2 speed lowering valve and a limit control security.Oil tank must be added to trailer, hydraulic contact between trailer and conveyor, is provided by 2 sockets.

Axles

2-3 pcs Axles, each one is with 9-12-16 tons capacity according to the trailer drum or disc brakes, hub centric, with 10 wheel nuts, and automatic slack adjuster.

Brake System

The WABCO or Haldex brand ABS or EBS brake system which is designed according to the European Standards is used. It consists of automatic brake ratchets, brake valves and brake bellows of 30.

Suspension System

It consists of automatic height adjusting system, Parabolic Z leaf springs, Suspension bellows, shock absorbers restricting extensive shaft movements and vibrations.Mechanical leaf spring suspension system.

Electric System

24 V illumination systems in conformity with the international standards, lamp with 7 functions, and electric socket with 7 pins are used. There are traffic warning panels on the vehicles.

Parking Legs

Consists of double cycle telescopic legs each of which has a capacity of 24 tons.

King Pin

King pin compliant with SEA/DIN norms and manufactured from steel (42 Cr Mo 4) which is highly resistant to being cut, stretched and broken off is of flange type and can be disassembled and assembled back.

Tyres and Wheel Rims

Tires 6 + 1 pieces of 385/65 R 22.5 sizes. Wheel Rims 6 + 1 piece 11.75V22.5 sizes or double wheel optional to the customer demand.

Standart Accessories

Water Retainer Mat, Spare tyre carrier, Wheel leaning mounting, Fire extinguisher preserving cabinet.

CAN'T FIND WHAT YOU'RE LOOKING FOR?
CONTACT US NOW!

Contact Us!

Enhanced Features

KNG Trailer manufactures 4 axle Cement bulker trailer from Turkey to World. In our 4 axle cement bulker trailers we use ST quality steel or aluminum on boiler and it can be done both 2 section or without section. This trailer can load and unload automatically from the related discharging system. According to customer desires we can change all technical details. KNG Trailer is a national and international certified brand on these type of trailers and can produce in different capacities.

  • Deutz motor compressor
  • High Loading Capacity
  • Fast discharging system
  • Low Price
  • Spare Part Guarantee


Mono Block chassis manufactured from ST Steel quality with welding machines.
Material for Boiler; Aluminium

    • Lenght 8000 mm – 12000 mm
    • Width 2550 mm
    • Operation Pressure 2 Bar
    • Test Pressure 2,5 Bar

3 or 2 Headed Electrical compressor.

2-3 pcs Axles, each one is with 9-12-16 tons capacity according to the trailer drum or disc brakes, hub centric, with 10 wheel nuts, and automatic slack adjuster.

Front shaft lifting system remote controlled from the driver’s seat.

The WABCO or Haldex brand ABS or EBS brake system which is designed according to the European Standards is used. It consists of automatic brake ratchets, brake valves and brake bellows of 30.

It consists of automatic height adjusting system, Parabolic Z leaf springs, Suspension bellows, shock absorbers restricting extensive shaft movements and vibrations.

Mechanical leaf spring suspension system.

24 V illumination systems in conformity with the international standards, lamp with 7 functions, and electric socket with 7 pins are used. There are traffic warning panels on the vehicles.

Consists of double cycle telescopic legs each of which has a capacity of 24 tons.

King pin compliant with SEA/DIN norms and manufactured from steel (42 Cr Mo 4) which is highly resistant to being cut, stretched and broken off is of flange type and can be disassembled and assembled back.

Tires 6 + 1 pieces of 385/65 R 22.5 sizes. Wheel Rims 6 + 1 piece 11.75V22.5 sizes or double wheel optional to the customer demand.

Water Retainer Mat, Spare tyre carrier, Wheel leaning mounting, Fire extinguisher preserving cabinet.
